We are the market leader in innovation for ultra-low profile, fine pitch micro-FPC connectors. Our Engineering team continually strives to develop products that help our electronic
design and manufacturing customers make their products smaller, lighter, more durable and reliable while still maximizing cost effectiveness. Some areas where our efforts can benefit
your designs:
- Back lock: 100% of our FFC/FPC ZIF connectors utilize our back lock cam mechanism which reduces damage to the FPC while increasing the connection reliability
- Cable lock: Our newer FFC/FPC ZIF connectors have a locking mechanism to lock the FPC cable for maximum retention and alignment within the FPC Connector
- Ultra Low profile: We understand the challenges of today’s electronic market space constraints. We are leading the way with the thinnest LIF/ZIF connectors on the market with
thicknesses ranging from as small as 0.5mm height with most of our FPC LIF connectors less than 1.0mm in height.
- Fine pitch: Reduced board space equates to value to designers. We have created LIF connectors for FPC circuits with alternatives including 0.2mm pitch, 0.25mm pitch, 0.3mm
pitch, 0.4mm pitch and 0.5mm pitch.
- Thin FPC: We are following the trends of the industry by developing products compatible to FPC thickness of 0.12mm to 0.3mm, which allow for mating without the need for the
extra cost of interface stiffeners
- Upper and lower contacts: We offer a variety of connectors to match your specific design needs. We were the first to offer connected upper and lower contacts to allow for FPC
design flexibility where a single ZIF connector can be utilized for either upper or lower contact requirements.

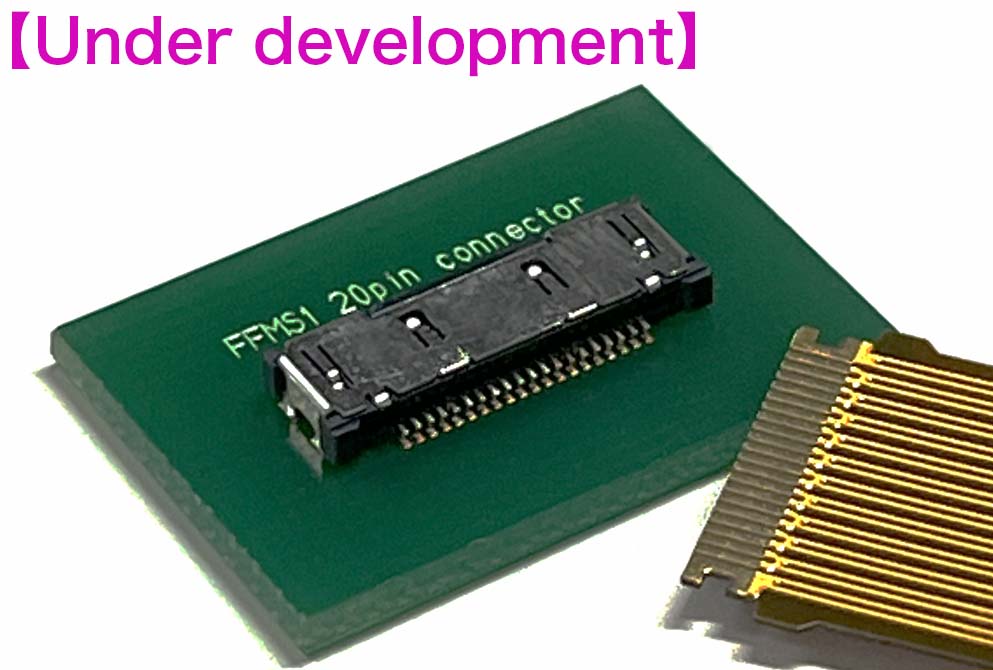

FFMS1

Contact
Pitch
 Number of Contact
Connector
Mounting Height
(mm)
FPC/FFC
Direction
of Insertion
Rated Current
(A)
ApplicableFPC/
FFC Thickness
(mm)
 Note
0.5
 10,20,30,40,50
1.9
Horizontal
0.5
0.3
Cable lock type
High speed
transmission:
20Gbps Max.
FF10

Contact
Pitch
 Number of Contact
Connector
Mounting Height
(mm)
FPC/FFC
Direction
of Insertion
Rated Current
(A)
ApplicableFPC/
FFC Thickness
(mm)
 Note
0.25
 80
0.95
Horizontal
0.2
0.15
---

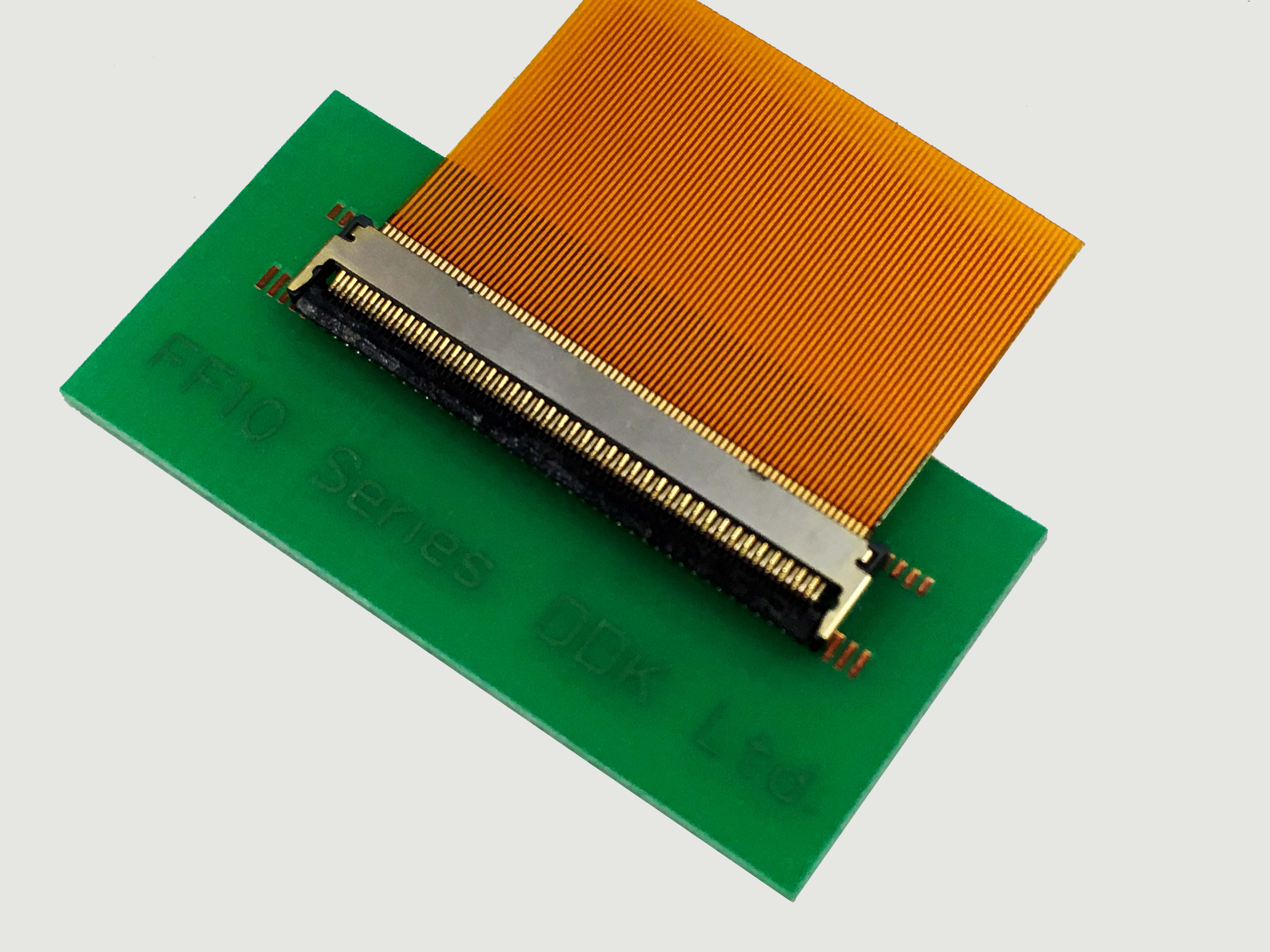

FF10S

Contact
Pitch
 Number of Contact
Connector
Mounting Height
(mm)
FPC/FFC
Direction
of Insertion
Rated Current
(A)
ApplicableFPC/
FFC Thickness
(mm)
 Note
0.25
 80
1.06
Horizontal
0.2
0.15
With metal shell
FF14

Contact
Pitch
 Number of Contact
Connector
Mounting Height
(mm)
FPC/FFC
Direction
of Insertion
Rated Current
(A)
ApplicableFPC/
FFC Thickness
(mm)
 Note
0.5

8,10,12,14,16,24
0.9
Horizontal
0.5
0.2, 0.12
---
FF14A

Contact
Pitch
 Number of Contact
Connector
Mounting Height
(mm)
FPC/FFC
Direction
of Insertion
Rated Current
(A)
ApplicableFPC/
FFC Thickness
(mm)
 Note
0.5
 4,5,6,8,10,12,14,16,
18,20,26,30,34,40
0.9
Horizontal
0.5
0.2
Cable lock type
FF14C

Contact
Pitch
 Number of Contact
Connector
Mounting Height
(mm)
FPC/FFC
Direction
of Insertion
Rated Current
(A)
ApplicableFPC/
FFC Thickness
(mm)
 Note
0.5
 40,50
1.0
Horizontal
0.5

0.3
---
FF18

Contact
Pitch
 Number of Contact
Connector
Mounting Height
(mm)
FPC/FFC
Direction
of Insertion
Rated Current
(A)
ApplicableFPC/
FFC Thickness
(mm)
 Note
0.4
 4,5,6,7,8,9,10
0.66
Horizontal
0.4
0.12
Cable lock type

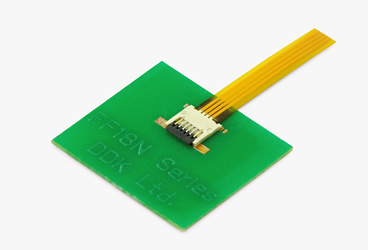

FF18N

Contact
Pitch
 Number of Contact
Connector
Mounting Height
(mm)
FPC/FFC
Direction
of Insertion
Rated Current
(A)
ApplicableFPC/
FFC Thickness
(mm)
 Note
0.4
 4
0.66
Horizontal
0.4
0.12
Cable lock type
FF22E

Contact
Pitch
 Number of Contact
Connector
Mounting Height
(mm)
FPC/FFC
Direction
of Insertion
Rated Current
(A)
ApplicableFPC/
FFC Thickness
(mm)
 Note
0.3
 84,92
2.57
Horizontal
0.2
0.2
 ---
FF27

Contact
Pitch
 Number of Contact
Connector
Mounting Height
(mm)
FPC/FFC
Direction
of Insertion
Rated Current
(A)
ApplicableFPC/
FFC Thickness
(mm)
 Note
0.175
 16
0.66
Horizontal
0.3
0.12
 Cable lock type
FF28

Contact
Pitch
 Number of Contact
Connector
Mounting Height
(mm)
FPC/FFC
Direction
of Insertion
Rated Current
(A)
ApplicableFPC/
FFC Thickness
(mm)
 Note
0.25

8,12, 30,35,41,45
0.66
Horizontal
0.2
0.12
 Cable lock type

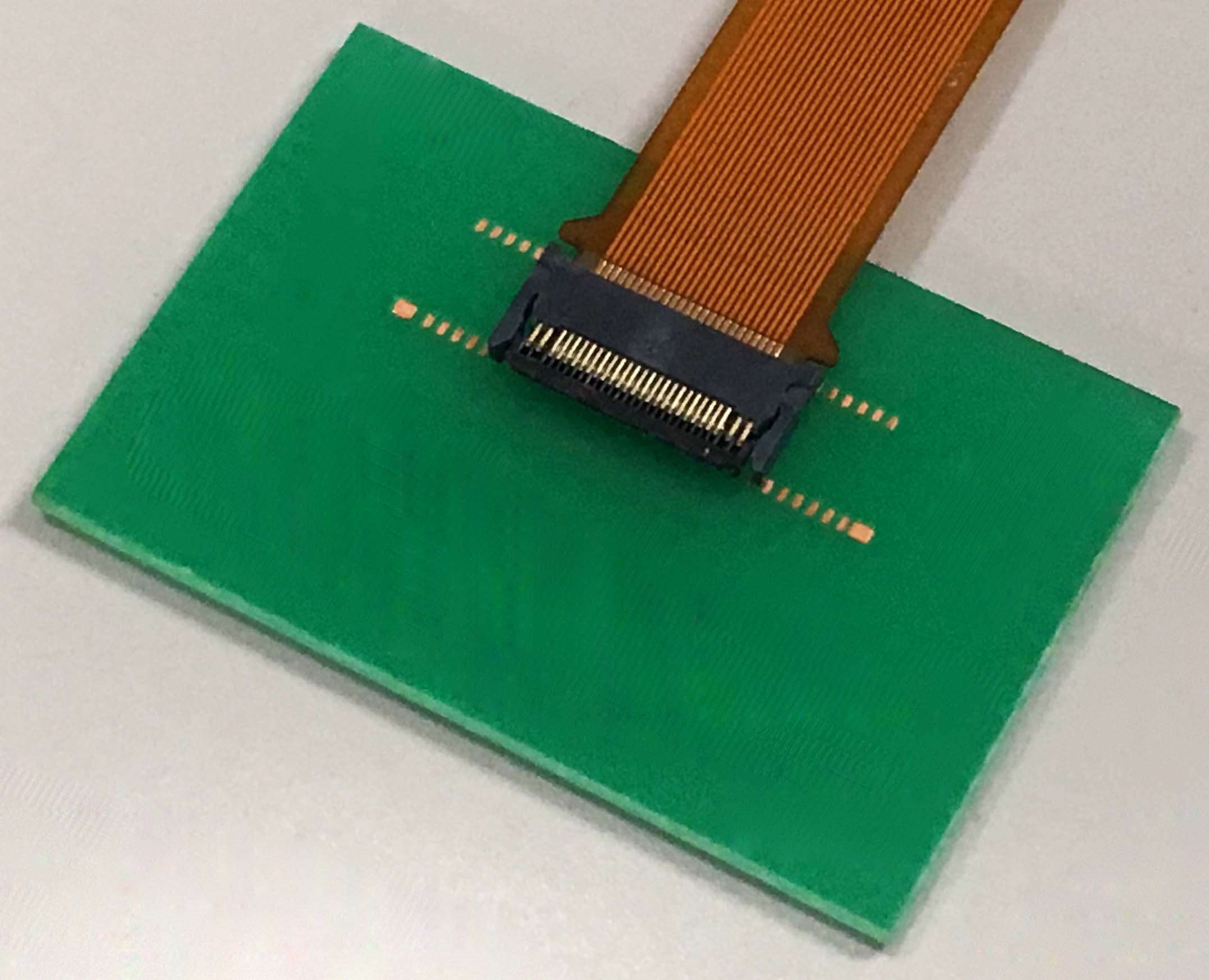

FF29B

Contact
Pitch
 Number of Contact
Connector
Mounting Height
(mm)
FPC/FFC
Direction
of Insertion
Rated Current
(A)
ApplicableFPC/
FFC Thickness
(mm)
 Note
0.175

16,20,22,25
0.66
Horizontal
0.3 Signal
2.0 Power
0.12
 ---
FF51

Contact
Pitch
 Number of Contact
Connector
Mounting Height
(mm)
FPC/FFC
Direction
of Insertion
Rated Current
(A)
ApplicableFPC/
FFC Thickness
(mm)
 Note
0.35
 4
0.5
Horizontal
0.2
0.12
 Cable lock type

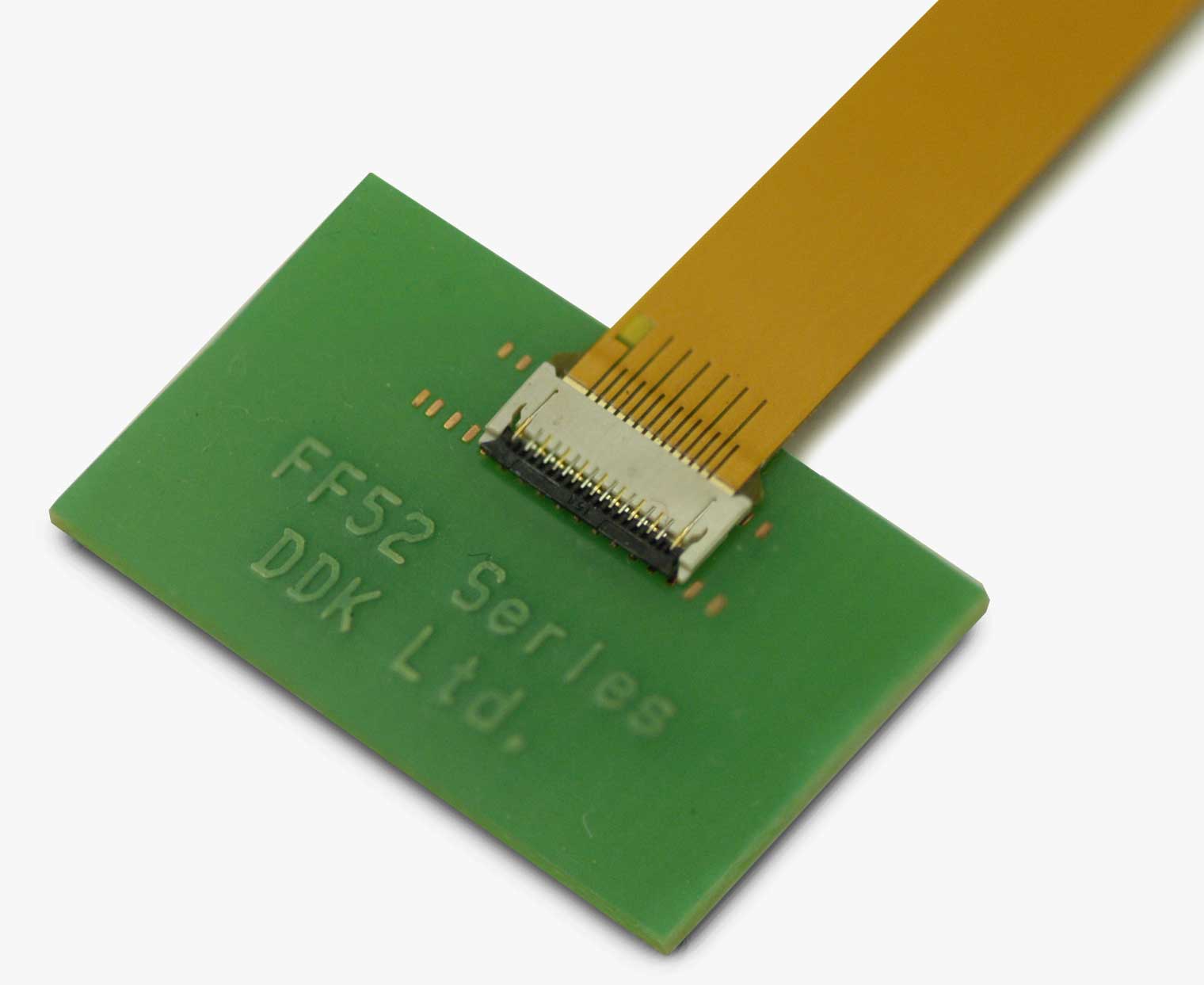

FF52

Contact
Pitch
 Number of Contact
Connector
Mounting Height
(mm)
FPC/FFC
Direction
of Insertion
Rated Current
(A)
ApplicableFPC/
FFC Thickness
(mm)
 Note
0.30
 8
0.5
Horizontal
0.2
0.12
 Cable lock type
FF57

Contact
Pitch
 Number of Contact
Connector
Mounting Height
(mm)
FPC/FFC
Direction
of Insertion
Rated Current
(A)
ApplicableFPC/
FFC Thickness
(mm)
 Note
0.175
 16
0.5
Horizontal
0.2
0.12
 Cable lock type

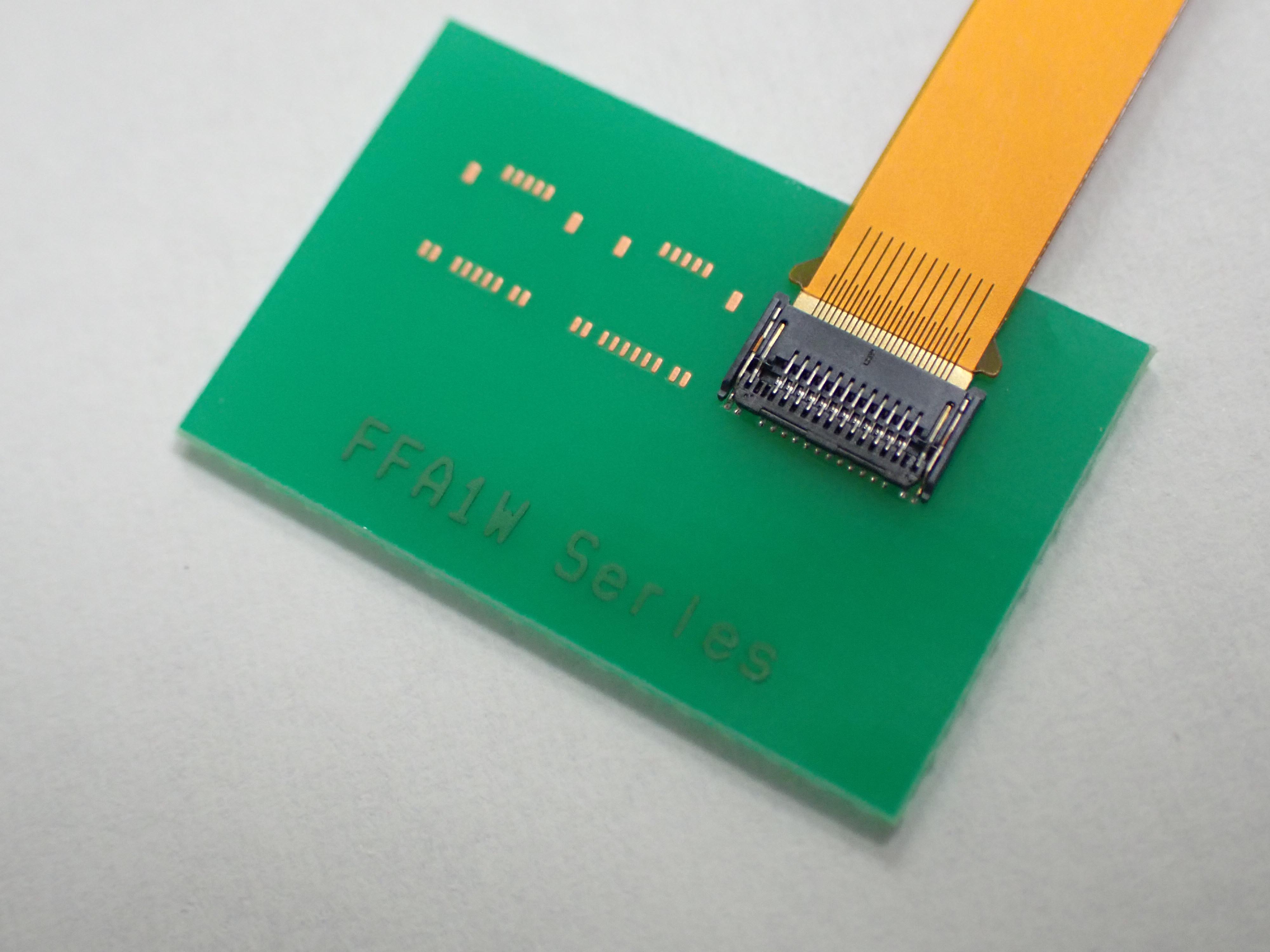

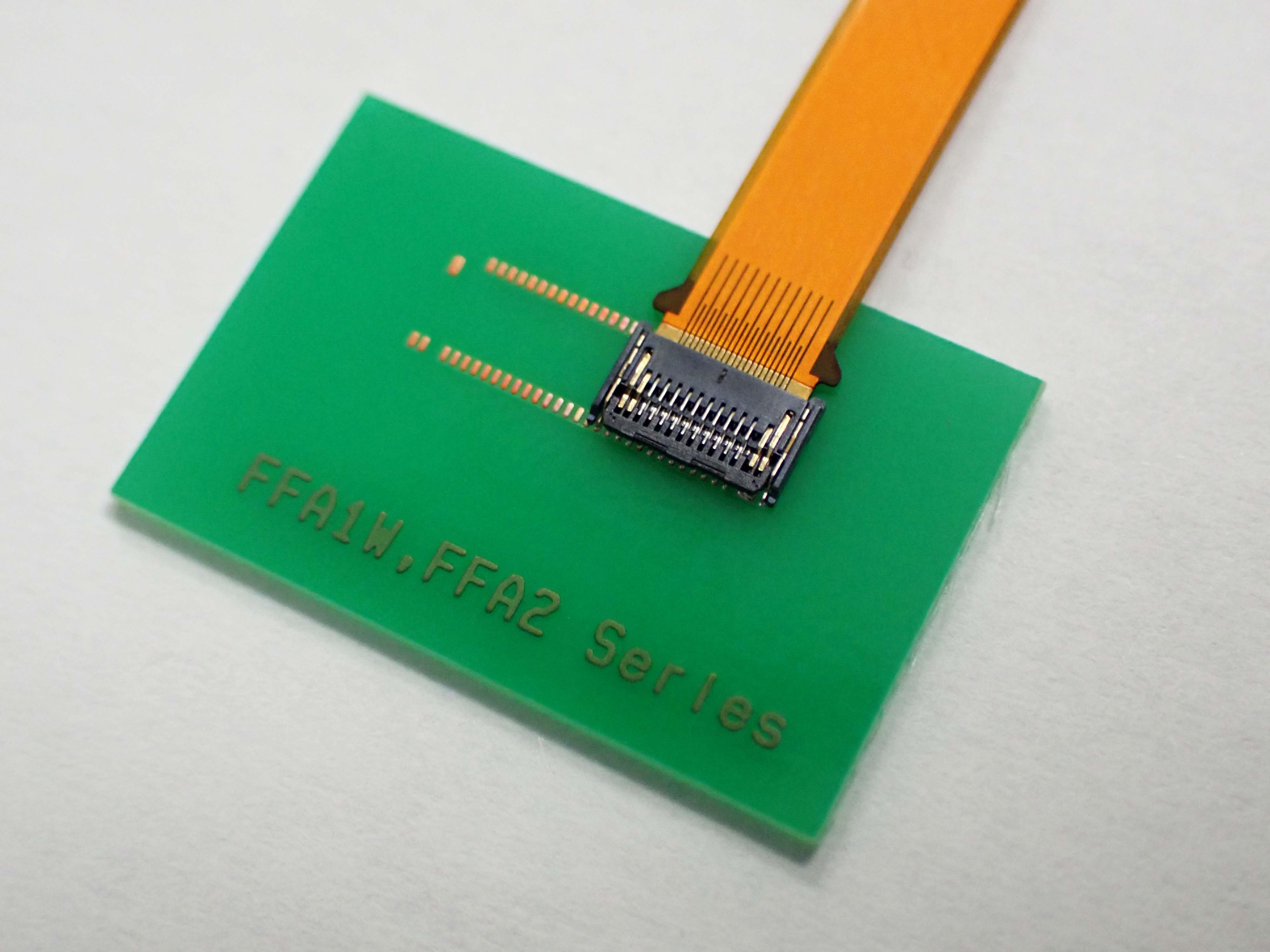

FFA1W

Contact
Pitch
 Number of Contact
Connector
Mounting Height
(mm)
FPC/FFC
Direction
of Insertion
Rated Current
(A)
ApplicableFPC/
FFC Thickness
(mm)
 Note
0.15

12,13,26
0.55
Horizontal
0.2
0.12
 ---
FFA2

Contact
Pitch
 Number of Contact
Connector
Mounting Height
(mm)
FPC/FFC
Direction
of Insertion
Rated Current
(A)
ApplicableFPC/
FFC Thickness
(mm)
 Note
0.15

6,22
0.55
Horizontal
0.2 Signal
2.0 Power
0.12
 ---
