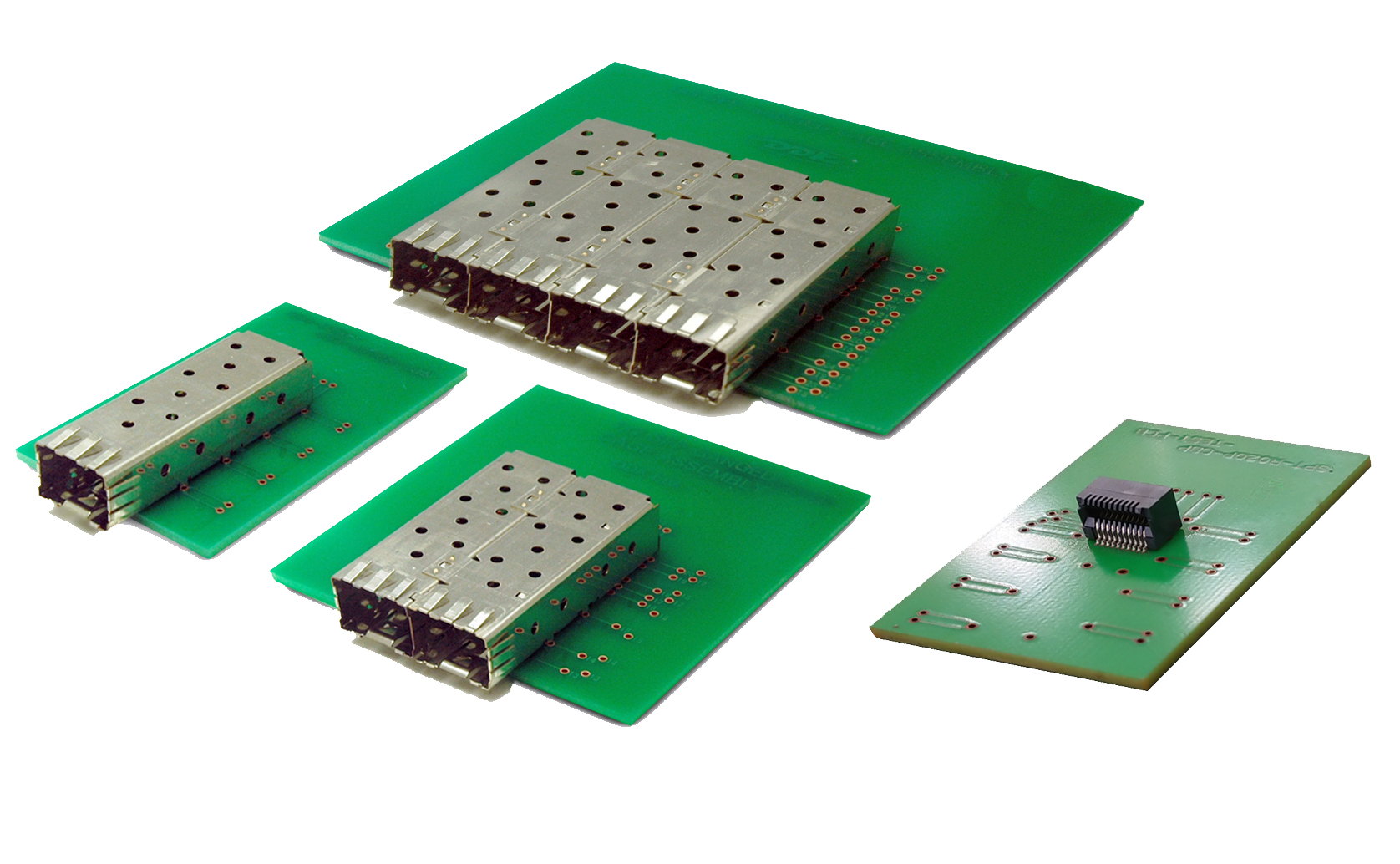

SPT

Contact
Pitch		 Number of
Contacts		 Applicable Cable Conforming Standard Note
0.8 20 Optical transceiver module SFP ---

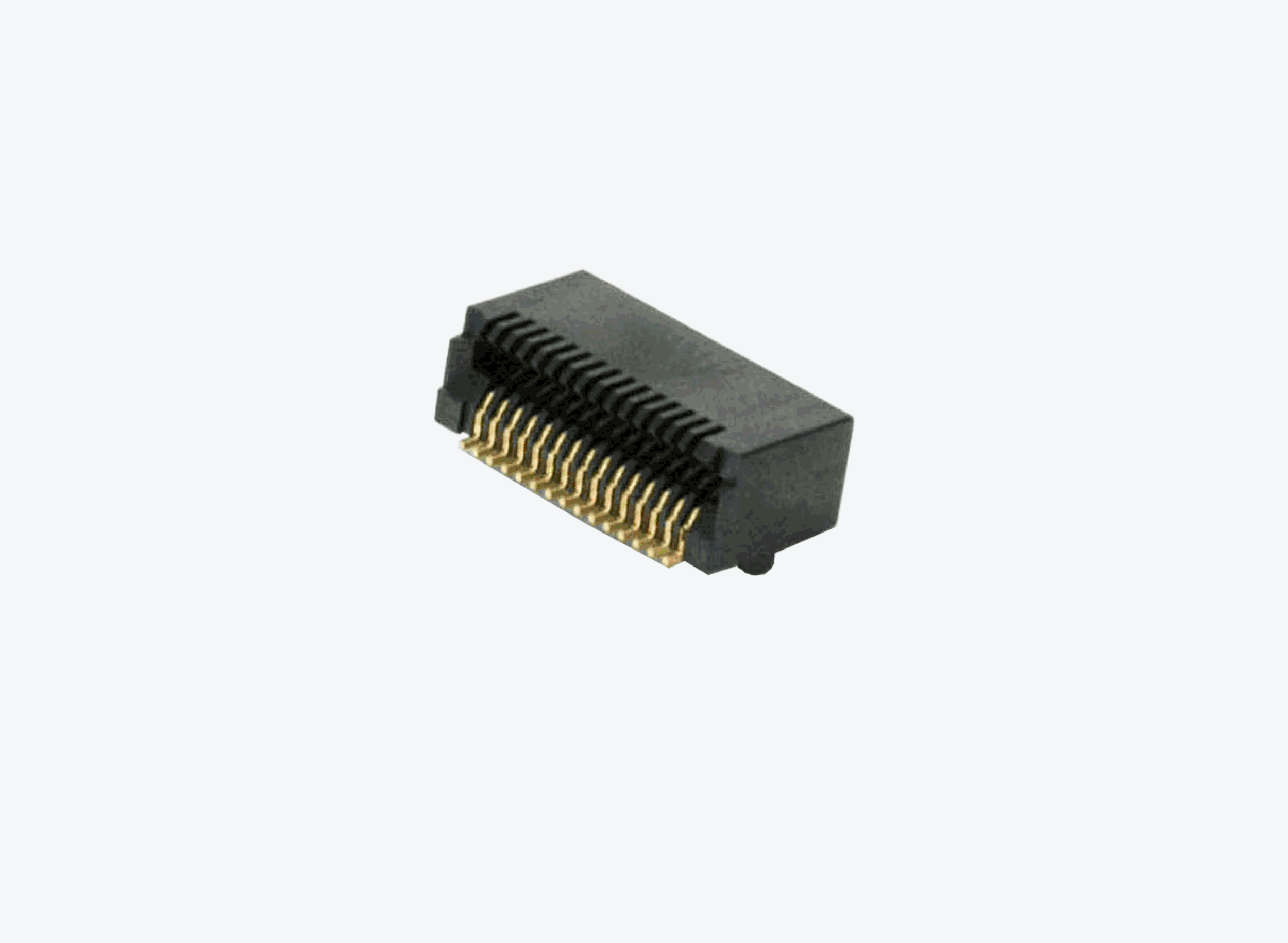

XPT

Contact
Pitch		 Number of
Contacts		 Applicable Cable Conforming Standard Note
0.8
30
Optical transceiver module
XFP
---
DUSB-MRC

Contact
Pitch 		Number of
Contacts 		Applicable Cable Conforming Standard Note
---
4
AWG20,22,24,26,28（Power）,
AWG28（Signal）
USB
---
DHF

Contact
Pitch		 Number of
Contacts		 Applicable Cable Conforming Standard Note
1.27
10,20
AWG28
---
---
17JE

Contact
Pitch		 Number of
Contacts		 Applicable Cable Conforming Standard Note
---
9,15,25,37
AWG20 max.（solid）,
AWG22 max.（standard）
MIL-DTL-24308
---
17JE

Contact
Pitch		 Number of
Contacts		 Applicable Cable Conforming Standard Note
---
9,15,25,37
---
---
DIP type
17JE Hood Kit

Contact
Pitch		 Number of
Contacts		 Applicable Cable Conforming Standard Note
---
9,15,25,37
---
---
17Series Hood kit
17LE

Contact
Pitch		 Number of
Contacts		 Applicable Cable Conforming Standard Note
---
9,15,25,37
---
---
DIP type
17DE

Contact
Pitch		 Number of
Contacts		 Applicable Cable Conforming Standard Note
---
9,15,25,37
AWG26,28,30（standard）
Insulator dia.φ0.8～φ1.2
---
---
57

Contact
Pitch		 Number of
Contacts		 Applicable Cable Conforming Standard Note
2.159
14,24,36,50
AWG22 max.（solid）,
AWG24 max.（standard）
---
---
57E

Contact
Pitch		 Number of
Contacts		 Applicable Cable Conforming Standard Note
2.159
14,24,36,50
AWG22 max.（solid）,
AWG24 max.（standard）
---
---
57FE

Contact
Pitch		 Number of
Contacts		 Applicable Cable Conforming Standard Note
2.159
14,24,36,50
AWG28（standard, solid）,
AWG30（solid）
---
---

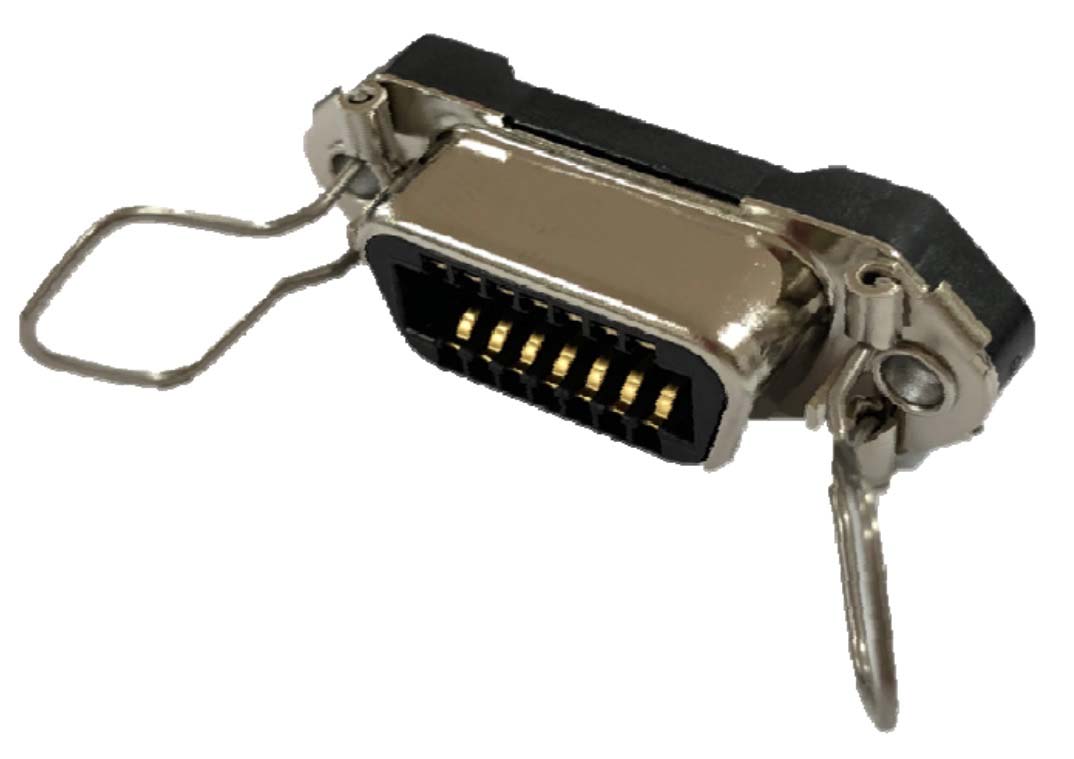

57GE

Contact
Pitch 		Number of
Contacts 		Applicable Cable Conforming Standard Note
2.159
14,24,36,50
---
---
DIP type

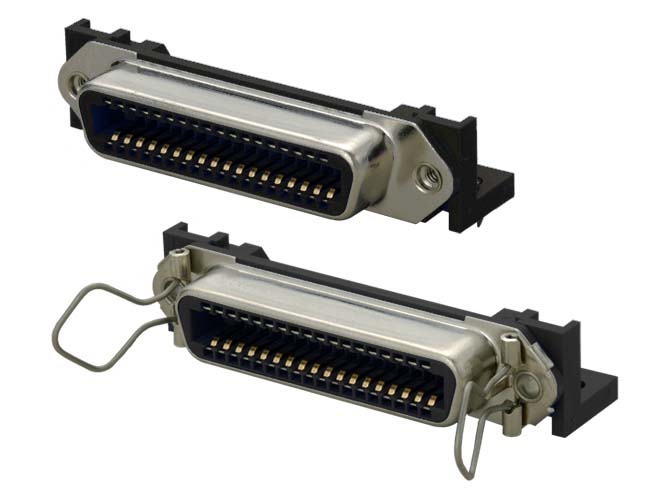

57LE

Contact
Pitch 		Number of
Contacts 		Applicable Cable Conforming Standard Note
2.159
14,24,36,50
---
---
DIP type
57RE

Contact
Pitch		 Number of
Contacts		 Applicable Cable Conforming Standard Note
2.159
14,24,50
---
---
DIP type
408JE

Contact
Pitch		 Number of
Contacts		 Applicable Cable Conforming Standard Note
2.159
24
IEEE Bus Cable
IEEE-STD-488-1979
IEC-Pud.625
GP-IB
DK-METAL

Contact
Pitch		 Number of
Contacts		 Applicable Cable Conforming Standard Note
5
4
AWG#16 ～ #28
-
IP67
3.5 12 AWG#18 ～ #28
5
30
AWG#18～#28
5
36,　50
AWG#18 ～ #28

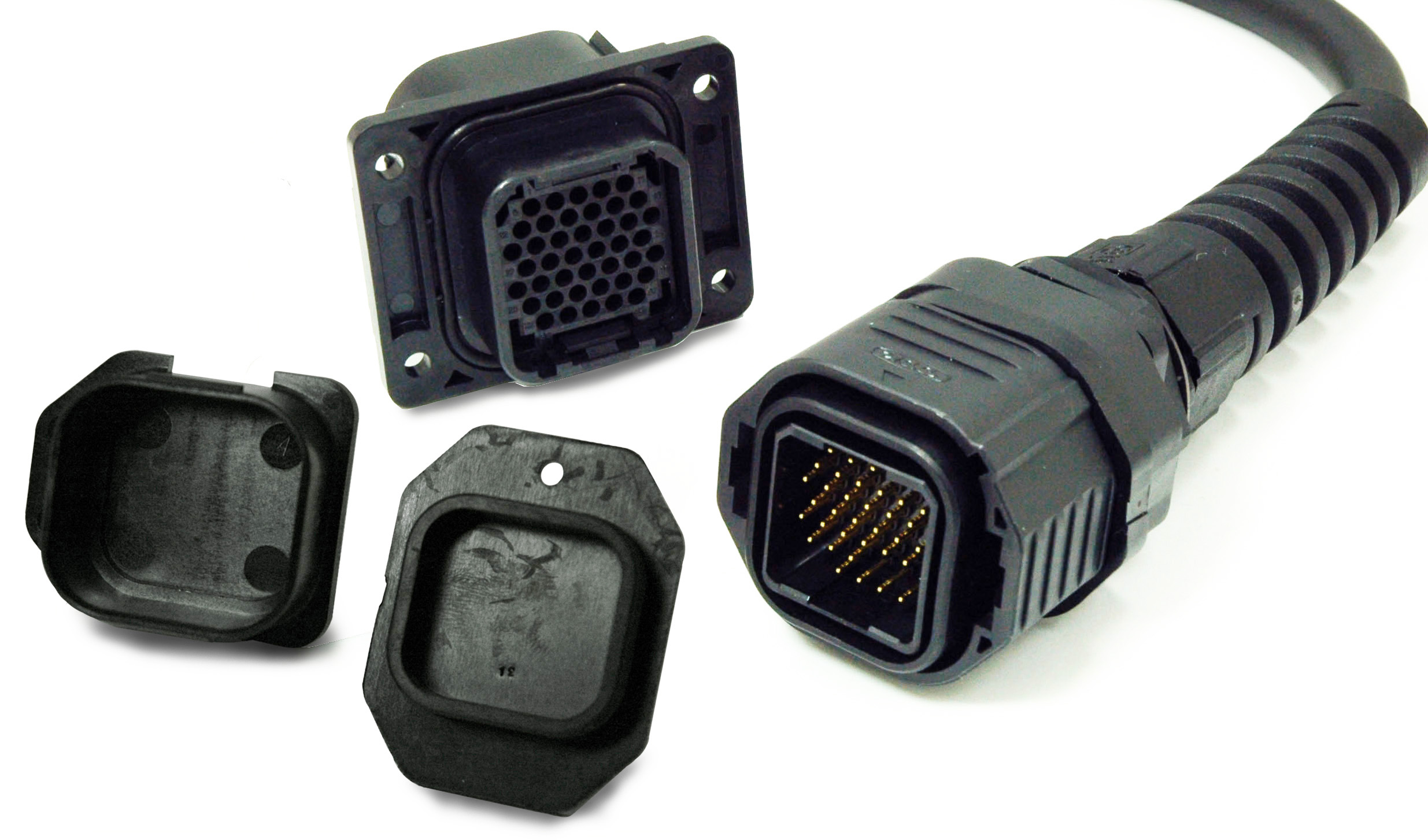

DIS

Contact
Pitch		 Number of
Contacts		 Applicable Cable Conforming Standard Note
---
42
 AWG#20-#28(Socket Crimp type)
AWG #20 and lower(Socket /Solder type)
AWG#24-#28(Pin /Crimp type)
---
IP67
