D/MS
Shell Size
Number of
Contacts
Lock Style
Rated Current
Conforming
Standard
Note
10SL,12S,14S,16S,
16,18,20,22,
24,28,32,36
1,2,3,4,5,6,7, 8,9,10,11,14,
16,17,19,20,22,24,26,30,31,
35,37,48,52,54,73
Threaded Coupling
13A,23A,
46A,80,
150A
MIL-DTL-5015
Non-Waterproof
D/MS(D190)
Shell Size
Number of
Contacts
Lock Style
Rated Current
Conforming
Standard
Note
10SL,12S,14S,
16S,16,18,20,
22.24.28.32.36
1,2,3,4,5,6,7,8,9,10,11,14,
16,17,19,20,22,24,26,30,
31,35,37,48,52,54,73
Threaded Coupling
13A,23A,
46A,80,
150A
MIL-DTL-5015
IP67(On Mated)

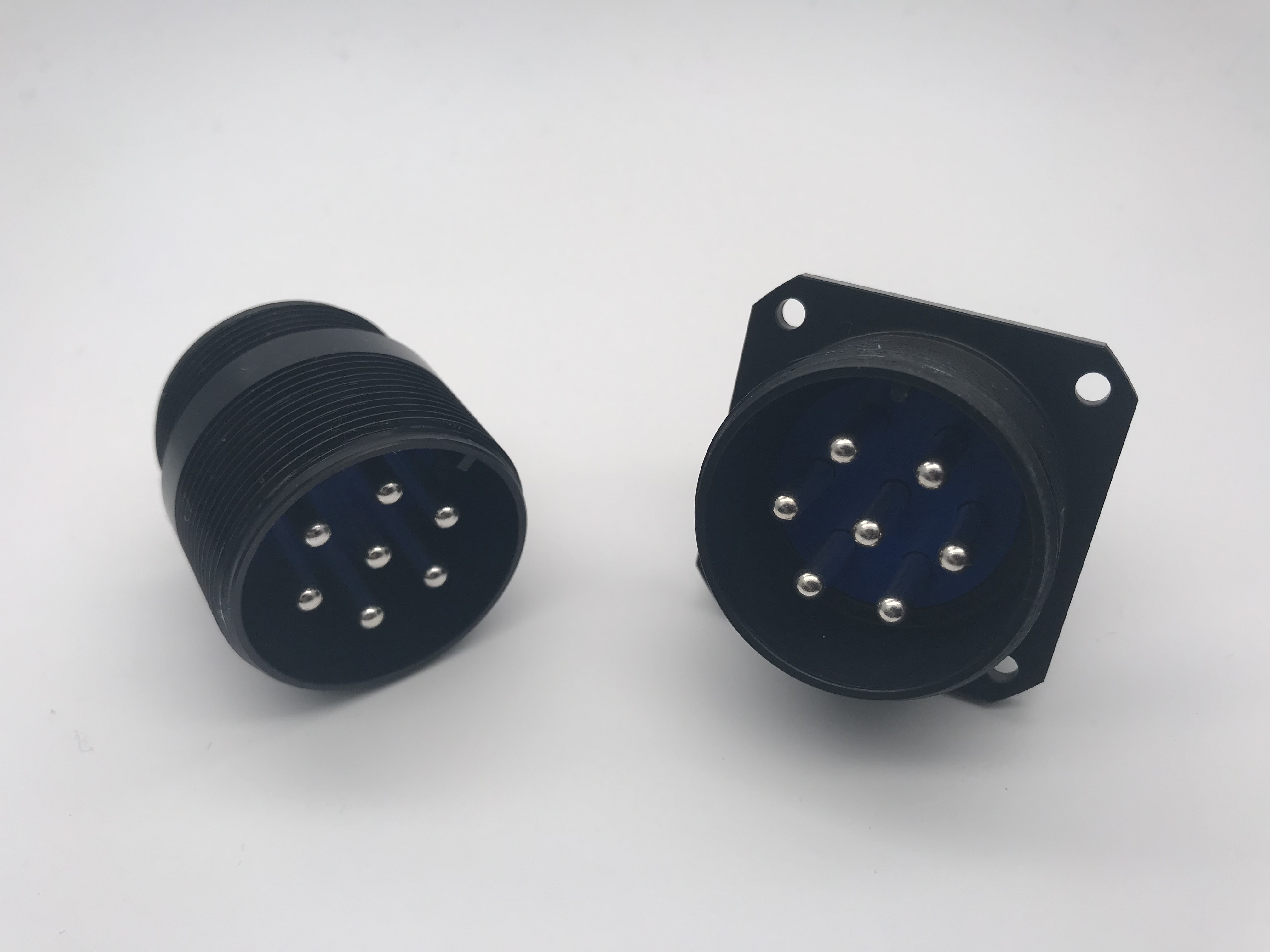

D/MS(D263)
Shell Size
Number of
Contacts
Lock Style
Rated Current
Conforming
Standard
Note
12S,14S,
16S,16,18,20,
22.24.28.32.36
1,2,3,4,5,6,7,8,9,10,11,14,
16,17,19,20,22,24,26,30,
31,35,37,48,52,54,73
Threaded Coupling
13A,23A,
46A,80,
150A
MIL-DTL-5015
IP67(On Mated)
DMS E/F/R
Shell Size
Number of
Contacts
Lock Style
Rated Current
Conforming
Standard
Note
10SL,12S,14S,
16S,16,18,20,
22.24.28.32.36
2,3,4,5,6,7,10,11,14,17,
19,24,37,48
Threaded Coupling
13A,23A,
46A,80,
150A
MIL-DTL-5015
IP67(On Mated)
CE01
Shell Size
Number of
Contacts
Lock Style
Rated Current
Conforming
Standard
Note
18,20,22,24,28
4,5,7,8,10,17,19,24,30,
37,52,73
Bayonet
Coupling
5A,13A,
23A,46A
JIS B 9960-1
IP67(On Mated)
CE02-6A
Shell Size
Number of
Contacts
Lock Style
Rated Current
Conforming
Standard
Note
10SL,18,20,22,
24
3,4,6,7,8,17,19
Threaded Coupling
13A,23A,
46A
MIL-DTL-5015,
JIS-B-6015
IP67(On Mated)
CE02-2A
Shell Size
Number of
Contacts
Lock Style
Rated Current
Conforming
Standard
Note
18,20,22,24
4,6,7,8,17,19
Threaded Coupling
13A,23A,
46A
MIL-DTL-5015
IP67(On Mated)
CE05
Shell Size
Number of
Contacts
Lock Style
Rated Current
Conforming
Standard
Note
10SL,14S,18,
20,22,24,32
3,4,6,7,8,9
Threaded Coupling
13A,23A,
46A,80A
EN61984
DIN-VDE0627
MIL-DTL-5015
IP67(On Mated)
DCA Series DCA
Shell Size
Number of
Contacts
Lock Style
Rated Current
Conforming
Standard
Note
10SL,12S,14S,
16S,16,18,20,
22.24.28.32.36
2,3,4,5,6,7,10,11,14,17,
19,24,37,48
Reverse
Bayonet
Coupling
13A,23A,
46A,80,
150A
MIL-DTL-5015
VG95234
IP67(On Mated)

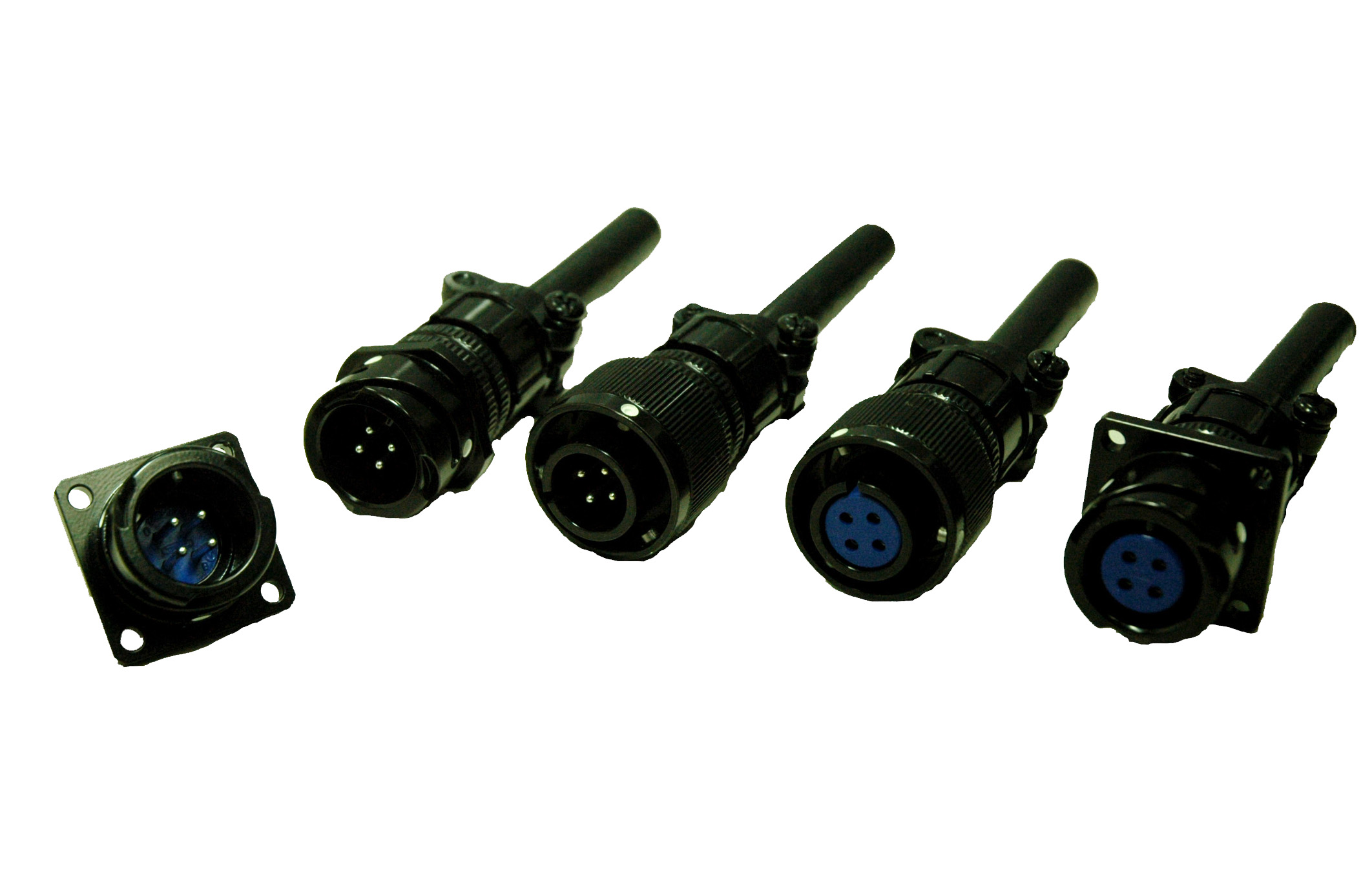

DCA-A
Shell Size
Number of
Contacts
Lock Style
Rated Current
Conforming
Standard
Note
14S, 16S,16,18,
20,22.24.28
1,2,3,4,5,6,7,8,9,10,
11,13, 14,16,17,20,
22,24,26,35,37
Reverse
Bayonet
Coupling
13A,23A,
46A,80,
150A
MIL-DTL-5015
VG95234
Non-Waterproof
JM
Shell Size
Number of
Contacts
Lock Style
Rated Current
Conforming
Standard
Note
13,16,21,25
3,4,5,7,10,16,19,24,28,32
Threaded Coupling
5A,10A
JIS-C-5432
Non-Waterproof
WEB
Shell Size
Number of
Contacts
Lock Style
Rated Current
Conforming
Standard
Note
13,16,21,25
3,4,5,7,10,16,19,24,28,32
Bayonet Coupling
5A,10A
---
IP67(On Mated)
CM02
Shell Size
Number of
Contacts
Lock Style
Rated Current
Conforming
Standard
Note
（M12)
5
Threaded Coupling
3A
Device Net
IP67(On Mated)
CM02B
Shell Size
Number of
Contacts
Lock Style
Rated Current
Conforming
Standard
Note
（M12)
4
Threaded Coupling
3A
NECA4202
IP67(On Mated)
CM02B
（Harness）

Shell Size
Number of
Contacts
Lock Style
Rated Current
Conforming
Standard
Note
（M12)
5
Threaded Coupling
3A
Device Net
IP67(On Mated)
CM03
Shell Size
Number of
Contacts
Lock Style
Rated Current
Conforming
Standard
Note
---
4,5
Threaded Coupling
13A
Device Net
IP67(On Mated)
CM03A
Shell Size
Number of
Contacts
Lock Style
Rated Current
Conforming
Standard
Note
---
4,5
Threaded Coupling
13A
Device Net
IP67(On Mated)
CM04T
Shell Size
Number of
Contacts
Lock Style
Rated Current
Conforming
Standard
Note
（M12）
8
Threaded Coupling
1.5A
---
IP67(On Mated)

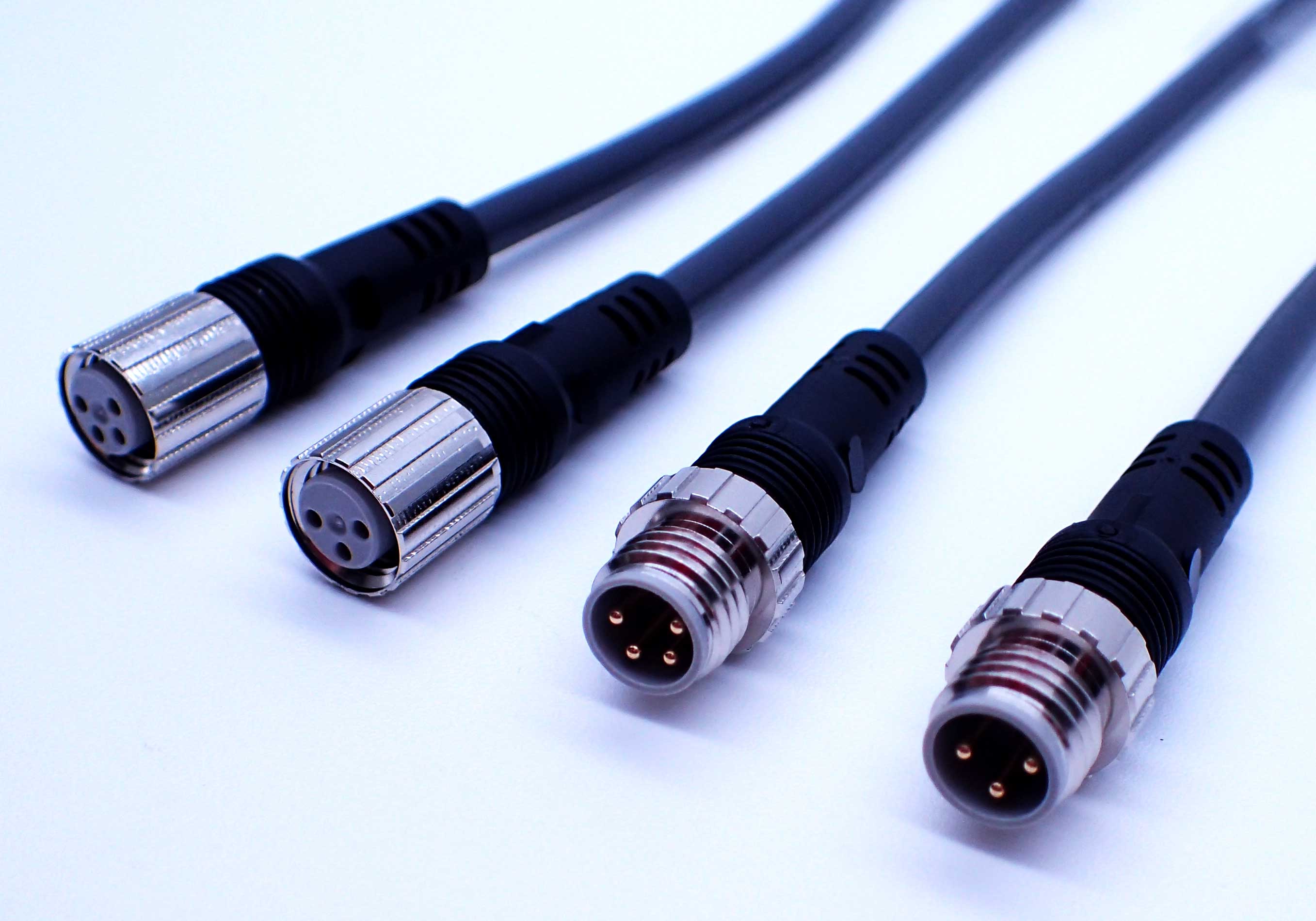

CM08
Shell Size
Number of
Contacts
Lock Style
Rated Current
Conforming
Standard
Note
（M8）
3,4
Threaded Coupling
1A
NECA
IP67(On Mated)
CM09
Shell Size
Number of
Contacts
Lock Style
Rated Current
Conforming
Standard
Note
---
25
Push Lock
1A
---
IP67(On Mated)
CM10(D)
Shell Size
Number of
Contacts
Lock Style
Rated Current
Conforming
Standard
Note
---
2,10
Push Lock
3A
---
IP67(On Mated)
CM10(D6)
Shell Size
Number of
Contacts
Lock Style
Rated Current
Conforming
Standard
Note
---
2,10
Push Lock
3A
---
IP67(On Mated)

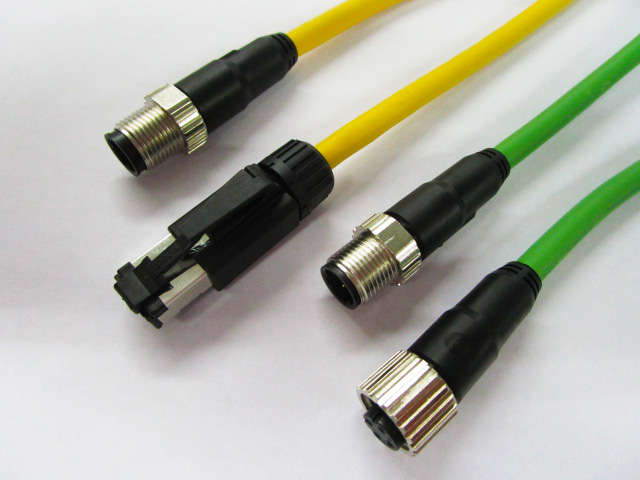

CM21
Shell Size
Number of
Contacts
Lock Style
Rated Current
Conforming
Standard
Note
M12
4
Threaded Coupling
3A
IEC61076-2-101 M12 D-coding
IP67(On Mated)
CMV1
Shell Size
Number of
Contacts
Lock Style
Rated Current
Conforming
Standard
Note
---
2,10
Push Lock
3A
---
IP67(On Mated)
CMV1S
Shell Size
Number of
Contacts
Lock Style
Rated Current
Conforming
Standard
Note
---
2,10
Threaded Coupling
3A
---
IP67(On Mated)
AIC
Shell Size
Number of
Contacts
Lock Style
Rated Current
Conforming
Standard
Note
(M16)
8
Threaded Coupling
5A
AISG
IP67(On Mated)
