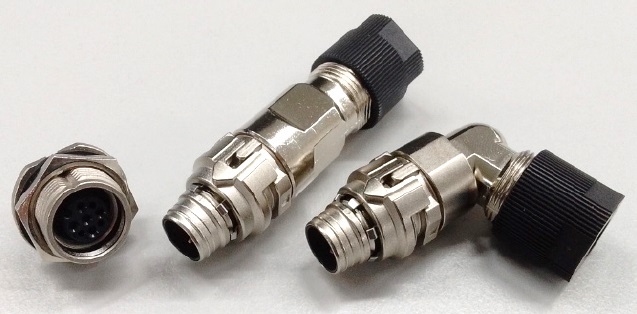

 M12 Push-Pull Connector
|
 |
 Technical data |
 |
 |
 |
 |
 |
| |
| |
| |
| |
| Features |
・Compliant with international standard IEC61076-2-010
・Mating and disconnection can be completed with one-touch(Push/Pull)
・Mating marks on both the receptacle and plug further improve ease of operation
・Receptacle connector can be mated M12 screws(IEC61076-2-101)
・A wide range of variations, such as lead-wire connection, board-mount, relay/extension, straight, and right-angle types
・Waterproof to IP67 when mated |
| Specifications |
| Rated Current |
4A / Contact |
| Rated Voltage |
60V DC/AC(r.m.s.) |
| Withstand voltage |
1,000V AC(r.m.s.) / 1 minute. |
| Insulation Resistance |
1,000 MΩ min. at 500V DC |
| Waterproofness |
IP67 (when mated) |
| Operating Temperature |
-25℃ to +85℃ |
| Number of contacts |
5 pole (Coding-A) |
|
|
